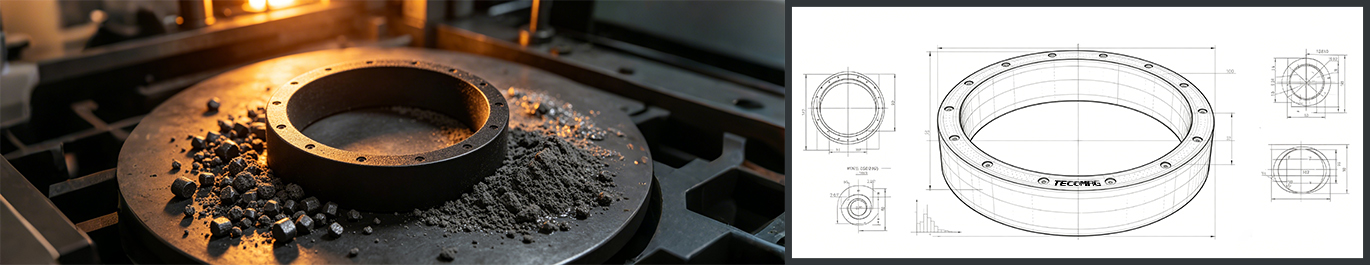

3 Questions Every Engineer Asks About Ferrite Magnet Rings

If you‘re an engineer or purchaser working with DC motors, fans, industrial drives, or automotive actuators, you‘ve likely faced the same questions about bonded ferrite magnet rings: How is density managed? Is radial orientation reliable? And can we count on batch‑to‑batch consistency? These aren‘t just technical checks—they influence torque, noise, and overall efficiency.

Density in injection‑molded rings comes from the precise mix of ferrite powder and a polymer binder, formed under heat and pressure. The process tends to produce fairly uniform distribution, though variations can occasionally arise from material moisture or melt‑flow changes. Reputable suppliers monitor density routinely—using methods like water displacement or X‑ray inspection—to catch shifts early. While bonded grades don‘t reach the density levels of sintered types, the real priority is uniformity within a run and across shipments.

Radial orientation involves aligning magnetic poles around the ring‘s circumference during magnetization. This creates a multi‑pole inner field that supports smooth motor rotation. Consistent orientation depends on fixture design and magnetizing‑pulse control—minor deviations can affect back‑EMF and cogging, so many makers test flux distribution on sample rings to verify the pattern. Then comes consistency, often the biggest trust factor. A perfect sample is one thing; maintaining that over thousands of parts is another. It relies on stable raw materials, precise mold tolerances, and tightly controlled injection parameters. Automated monitoring and statistical process control help, but ultimately it‘s about process discipline. When evaluating suppliers, asking about their CpK values often gives more insight than generic assurances.

These three aspects are interconnected. Good density supports effective orientation, and both depend on repeatable processing. For engineers, understanding these links makes sourcing decisions clearer and reduces the risk of unexpected performance issues downstream.
